Broadcaster Pro Input Diagram

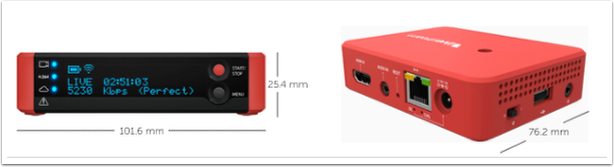

The Broadcaster Pro's dimensions are as follows:

  • Width: 76.2 mm
  • Length: 101.6 mm
  • Height: 25.4 mm
  • Weight: 5 oz

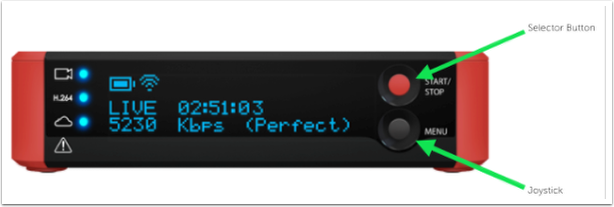

The front of the Broadcaster Pro features an OLED display with a red selector button and black joystick that provide full control of the device.

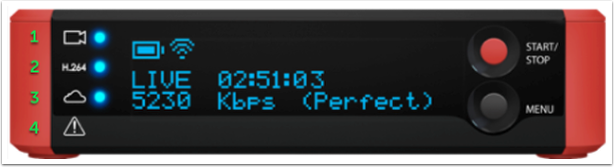

There are also four indicator lights:

1. Video signal detected
2. Encoder is ready
3. Streaming live
4. Caution/error

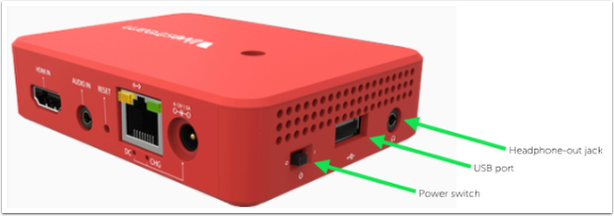

The left side includes the power switch, USB port, and headphone-out jack.



Note: The USB port only works with compatible USB 3G/4G modems.

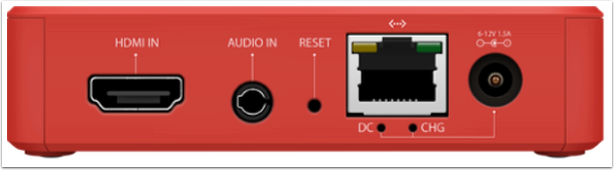

The back of the device has, from left to right: the HDMI input, line-in/mic-in input, factory reset button, Ethernet port, and AC jack.

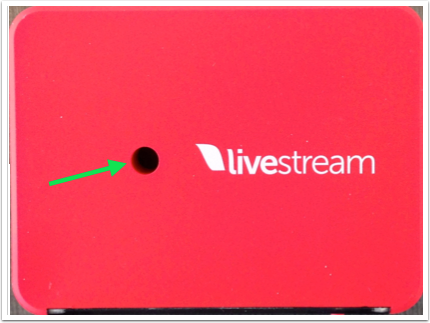

The hole for the thumb screw used with the shoe mount is visible from both the top and bottom of the Broadcaster Pro.
