Importing Livestream Graphics Files

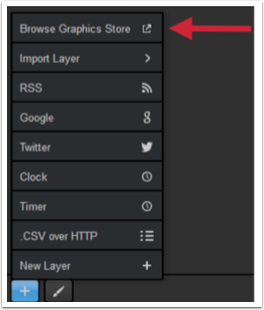

Livestream’s Graphics Store has numerous templates that can be downloaded and imported into Livestream Studio. Click the + button in any GFX module, then Browse Graphics Store to get started.

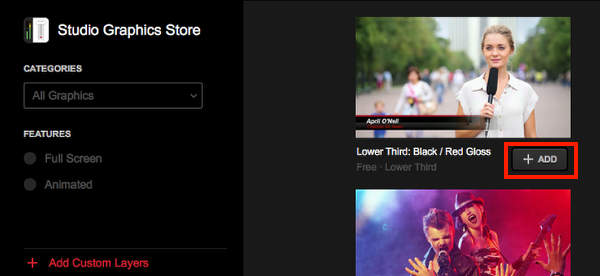

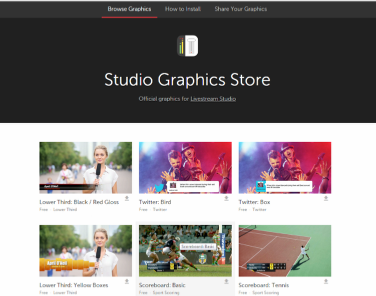

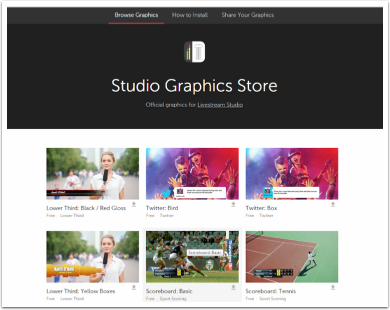

This will open your browser to the Studio Graphics Store. When you find a graphic you wish you use, click on the down arrow below the image to download it.

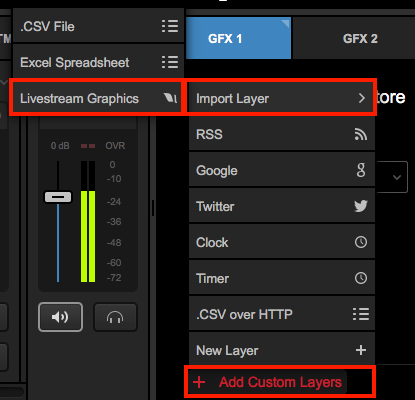

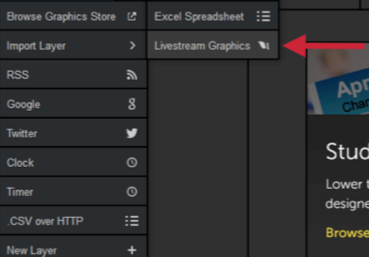

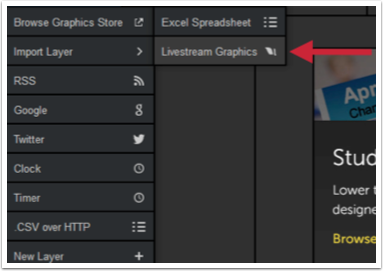

An .lsgfx file will be downloaded onto your hard drive. To use the graphic in Livestream Studio, click the + button in the graphics overlay channel, then click Import Layer > Livestream Graphics.

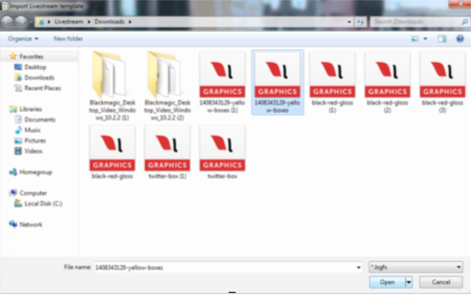

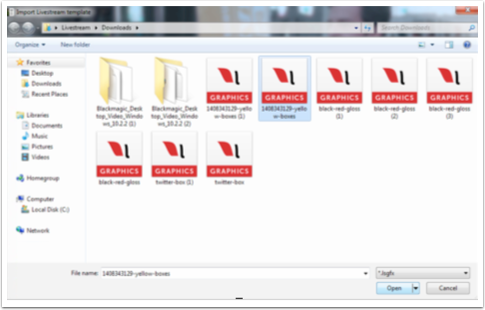

Browse your computer for the .lsgfx file you just downloaded (this is typically found in the Downloads folder on PC’s). When you find the file, click Open.

The layer will appear in your graphics overlay channel. Click the gear wheel to enter its settings.

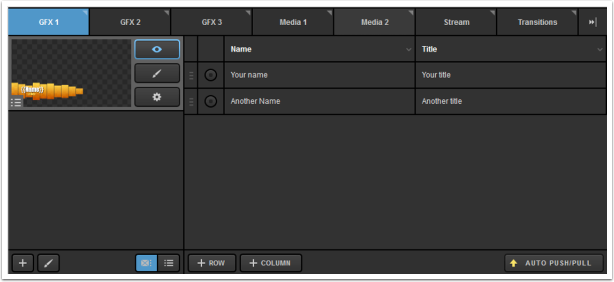

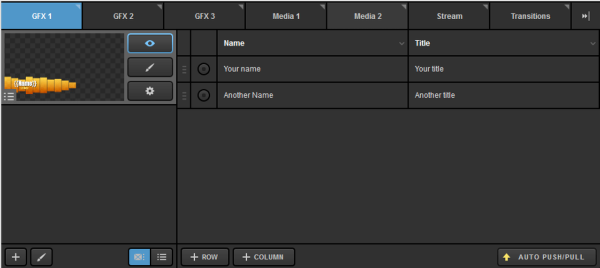

For lower third graphics, there are two text type columns and two rows included by default.

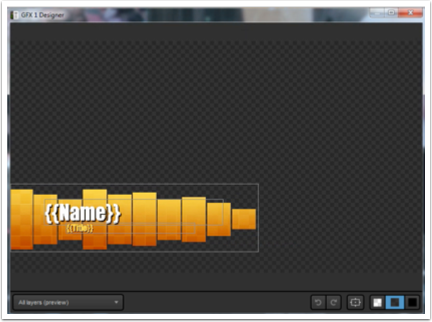

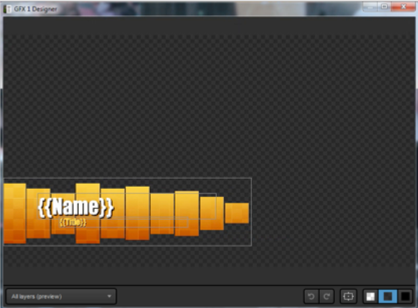

If you open the GFX Designer, you will see clearly which text fields the two columns correspond to and can adjust them as necessary.

Just as with any manually built graphic, you can add as many columns for data fields or rows of content as necessary.
