Using 4K Project Formats

Starting with Livestream Studio version 3.0, producers can use 4K video capture cards to bring 4K video signals into Livestream Studio.


Important: While your outputs and ISO recordings will be in your selected project format, you cannot at this time stream higher than 1080p (or 720p, depending on the selected streaming provider).

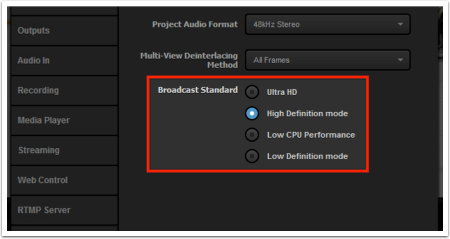

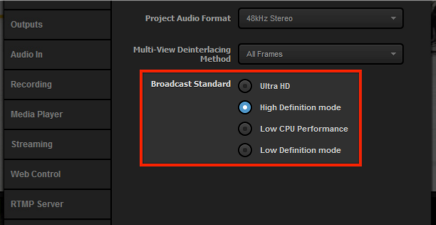

In settings, under the ‘Project Format’ menu, there is an option for Broadcast Standard.

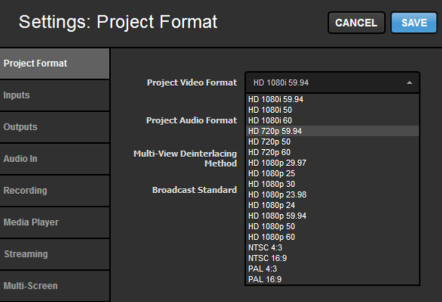

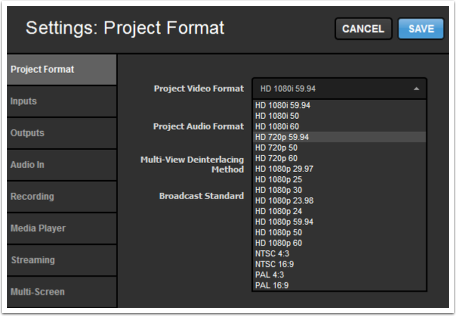

Earlier versions of Livestream Studio only had the options shown under High Definition mode.

There are two new broadcast standards supported starting in version 3.0: Ultra HD, and Low Definition mode.

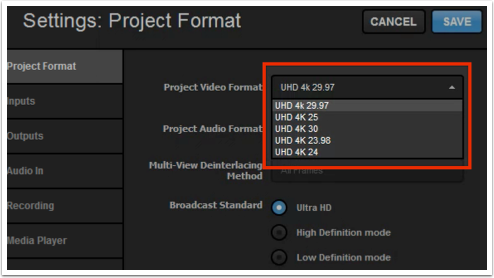

Selecting ‘Ultra HD’ will allow you to choose a 4K format as your Project Format. This means that you can use 4K cameras with supported 4K capture cards to bring in 4K video signals.

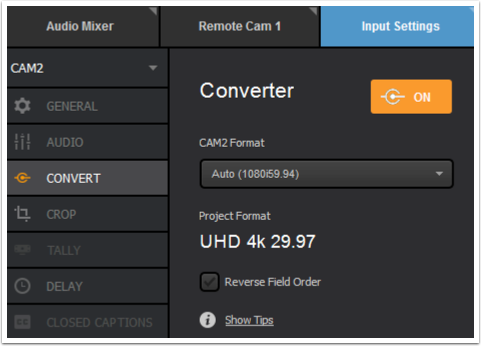

Any camera sources that are not in 4K can be converted under the ‘Input Settings’ tab. Please note that using the converter may increase your CPU.
