Set Up the Portal Router

Now that the mini PC is set up and ready to bring in a quality audio source, the next step is to connect the PC to the Internet.

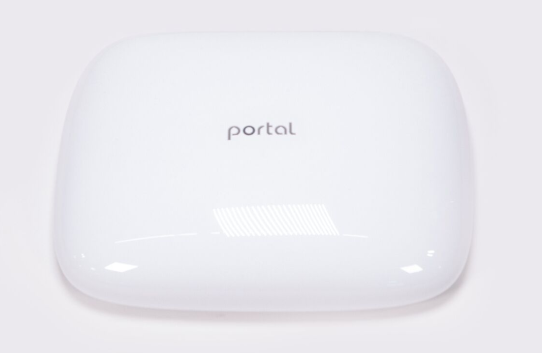

You can find the white Portal router in the top layer of the kit. This will allow you to put all of your connected devices on the same internet access point, which is crucial for connecting your Mevo cameras to Livestream Studio. We strongly recommend using the included router when setting up your kit.

The network credentials for your Portal router have been preconfigured as follows:

Name: LS-3CamKit-#

Password: streamnow

Connect the router to power

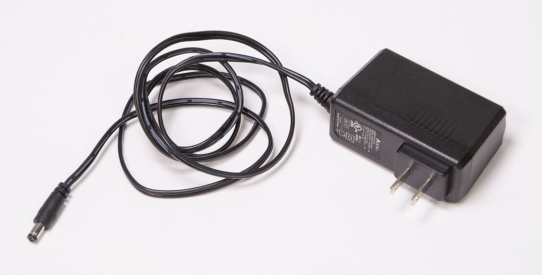

You can find the router's power cable in the middle layer of the kit.

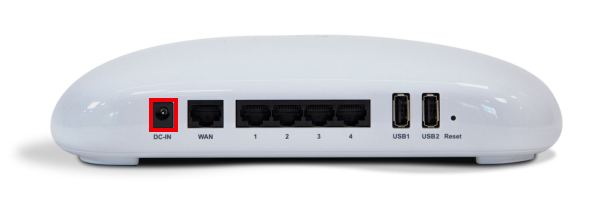

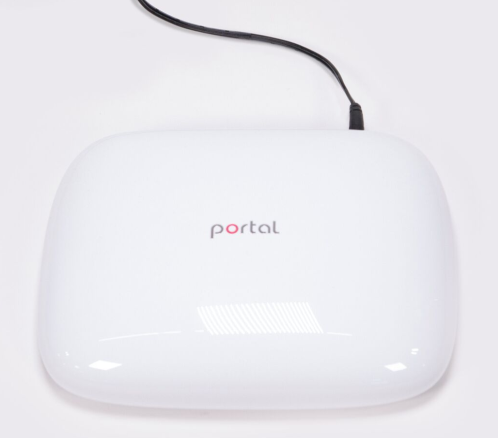

Connect it to the DC-IN port on the back of the router; plug the other end into a power outlet. You will notice the "o" in "Portal" will light up in red.

Connect the router to the internet

As covered in the "Introduction," you need to supply your own internet connection from a local ISP, just as you would if you were setting up a router for any home network.

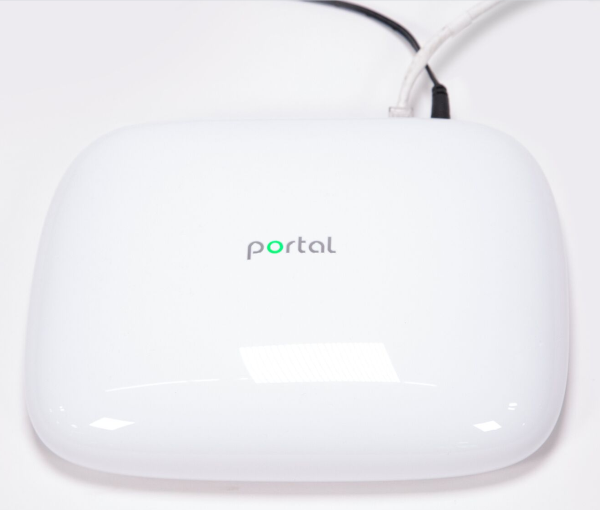

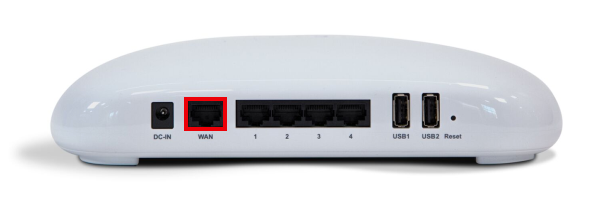

Take an Ethernet cable from your modem or switch and plug it into the WAN port on the Portal router. After a moment, the "o" in "Portal" will turn green, indicating it is connected to the internet.

Connect the mini PC to the router

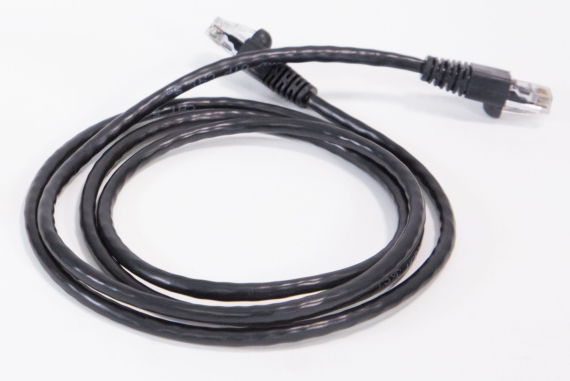

Your kit came with six Ethernet cables: two 10-foot, two 50-foot, and two 100-foot cables. Since the router and the PC should be close to each other, we recommend using one of the 10' cables for this purpose; the cables can be found in the middle layer of the kit.

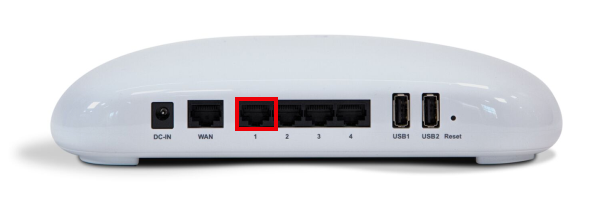

Plug one end of the Ethernet cable into one of the four Ethernet ports on the router.

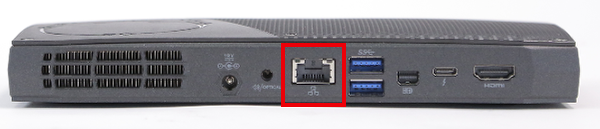

Plug the other end of the Ethernet cable into the Ethernet port on the back of the mini PC.
